防水球型 4G/WiFi 移動式攝錄影機

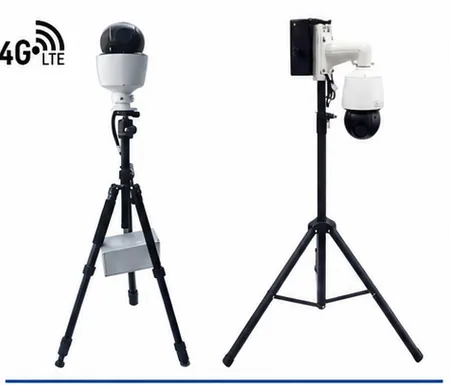

Water-Proof 4G/WiFi Camera System
Key Features
- 防水等級 IP66、防暴 IK10
- 4百萬畫素、優越級寬動態、H.265 分辨率
- 白天與夜晚 with 優越級低照度感測 and 智能型 IR LED
- PTZ 自動追蹤、Endless Pan & Tilt、電動變焦、自動對焦
- 鋰離子充電電池，可使用 10–15 小時（9800mA）
- 無線 4G/Wi-Fi 傳輸，移動式即時攝影機錄影
- 25 倍光學鏡頭，左右 360° 無終端；上下 120° 調整支架（選配）
| General | |
| Power Source | DC 12V, High PoE (IEEE802.3at) |
|---|---|
| Power Consumption | 21 W (PoE) |
| Operating Temperature | -40°C ~ 65°C (-40°F ~ 149°F) |
| Environmental Casing | Weatherproof (IP66), Vandal proof (IK10) |
| Approvals | CE Class B, FCC Class B, IP66, IK10 |
| Weight | 7.5Kg (Tripod included) |
| 4G LTE 無線傳輸模組 | LTE-Cat.4、2 × SIM；2 × RJ45FE (WAN/LAN)；LTE/Ethernet/Wi-Fi failover；IEEE 802.11n；IPSec / OpenVPN / PPTP / L2TP / GRE；APN |
| 可充電鋰電池供電系統 | 可充電式鋰電池系統 DC 12V, 9800mA，可充電式鋰電池系統（持續使用 10–15H） |
| 支架 | 鋁合金或碳纖材質、強結構（選配） |
MTL-4G-WP-SPD
| Device | |
| Maximum Resolution | 4MP |
|---|---|
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/2.8" |
| Day / Night | Yes |
| Low Light Sensitivity | Superior |
| Minimum Illumination | Color: 0.003 lux at F1.5 (AGC on); B/W: 0 (IR LED on) |
| IR LED | Adaptive IR LED; 150m (1.0 lux at tele mode) |
| Electronic Shutter | 1-1/100000 second (manual mode); 1-1/100000 second (auto mode) |
| S/N Ratio | 56 dB |
| Lens | |
| Focal Length | Zoom, f4.8-120mm |
| Aperture | F1.5-F3.8 |
| Zoom Ratio | 25x optical zoom, unlimited digital zoom (via web browser) |
| Iris & Focus | Auto iris & Auto focus |
| Horizontal Viewing Angle | 55.3° - 3.2° |
| Vertical Viewing Angle | 56° - 2.1° |
| PTZ | |
| Manual Panning / Tilting Speed | 0.1° - 200°/second, 0.1° - 120°/second |
| Preset Panning / Tilting Speed | 240°/second, 200°/second |
| Panning Range | 360° endless |
| Tilting Range | -15°~90° (with E-flip) |
| PTZ Control | Remote manual control, 1024 preset points, 16 preset tours |
| Pan, Tilt or Zoom protocol | Pelco-D, Pelco-P |
| Video | |
| Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate v.s. Resolution | 30 fps at 2688×1520; 30 fps at 2560×1440; 30 fps at 1920×1080; 30 fps at 1280×720; 30 fps at 720×576; 30 fps at 704×288; 30 fps at 640×360; 30 fps at 352×288 |
| Multi-Streaming | Simultaneous triple streams |
| Wide Dynamic Range | Superior WDR (120 dB) |
| Image Enhancement | White Balance, Backlight compensation (BLC), Defogging |
| Digital Noise Reduction | 2D + 3D DNR |
| Privacy Mask | 24 configurable regions |
| Image Orientation | Flip, Mirror, Rotation (Corridor mode) |
| Network | |
| Network Protocol & Service | IPv4, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, UPnP, QoS, SSL/TLS, IEEE 802.1X |
| Ethernet Port | 1 × Ethernet (10/100 Base-T), RJ-45 connector |
| Security | IP address filtering, HTTPS encryption, password protected user level, IEEE 802.1X network access control |
| Integration | |
| ONVIF Compliant | Profile S, Profile G, Profile T |
| Interface | |
| Serial Port | 1 × RS-485 |
| Analog Video Output | 1 × BNC connector |
| Local Storage | MicroSD Memory Card Slot, optional 256Gb |
快速判斷
適用環境
高溫／危險／粉塵／連續製程等需要遠端觀測的場域。
核心價值
提升可視性、降低人員暴露風險，並將異常資訊送到管理端。
可整合
可依專案需求規劃網路、告警、熱像、AI與中央監控。
工程需求表
| 需求項目 | 建議提供資訊 |
|---|---|
| 現場溫度 | 正常／最高溫度與量測位置 |
| 安裝位置 | 爐內、爐壁、設備外側、管線或其他位置 |
| 影像需求 | 彩色、熱成像、固定、迴轉、360°或移動 |
| 通訊方式 | 網路、4G／WiFi、既有監控系統 |
| 認證條件 | 是否有防爆、防水或其他場域要求 |
建議下一步
填寫現場條件不用先知道型號
工程初判確認適用架構
方案與報價依規格提供建議
專案導入施工、測試與整合
不知道該選哪一款？沒關係。
提供現場溫度、距離、照片、設備用途與需求，我們先幫您判斷。
