真空擴散爐內耐高溫攝影機Vacuum Diffusion furnace Camera
雙層不鏽鋼防護罩，壓縮空氣冷卻攝影機後循環回收至爐外部排放，可耐溫度 500°C 環境。
300 萬畫素電動鏡頭自動對焦
Key Features
Double Layer Stainless Steel Housing for Air Cooling
cooling camera below 40°C
Motorized Auto Focus
Temperature Detector on Camera, Display
Temperature on screen, Alarm out on Buzzer
Resistant to ambient temperature over 500°C
Onboard storage by Micro SD/SDHC
ONVIF (Profile S) Standard
採壓縮至高處光纖鏡，攝影機能降溫至 40°C 以下。
攝影機直接儲存影像，具有溫度偵測，即時顯示溫度在螢幕上，並具有溫警報功能。

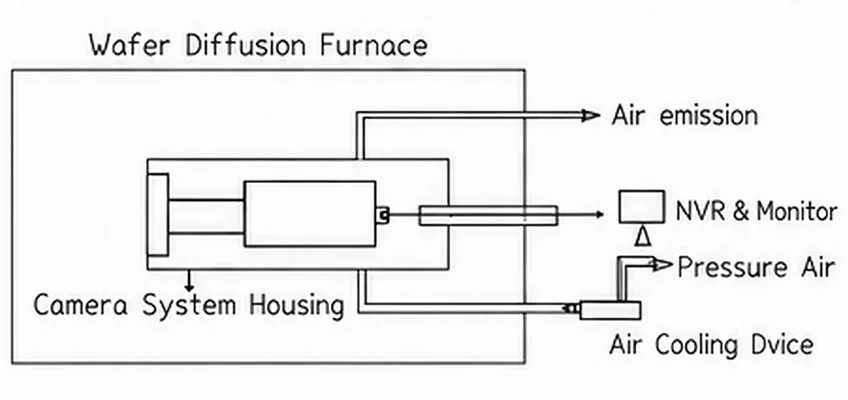

晶圓擴散爐

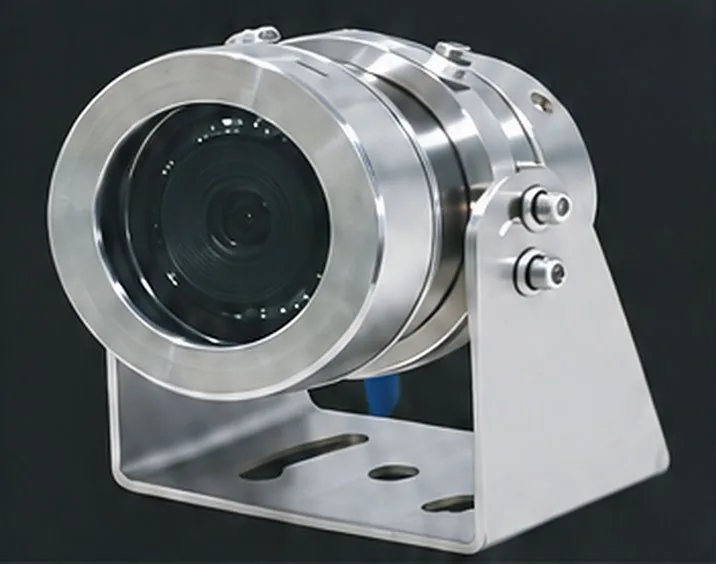

MICS-7501-TVM
| Camera | |
|---|---|
| Image Sensor | 1/2.8” 3.21M Progressive Scan CMOS |
| Lens | 2.8 ~ 12.0mm (F1.2) motorized, auto IRIS |
| Min. Illumination | Color : 0.05 lux, B&W: 0.0005 lux / 0 lux (IR) |
| IR | 30 IR LED (optional built-in) |
| PoE | IEEE 802.3af |
| Video | |
| Streaming | Triple Streaming |
| Compression | H.264, MJPEG |
| Resolution | 2048x1536, 1920x1080, 1280x720, 704x480, 640x352, 320x176, 160x96 |
| Max. Frame Rate | 30fps, 25fps |
| Bit Rate Control | VBR, CBR (H.264 only, 32K~12Mbps) |
| Frequency Control | 60hz, 50hz |
| Buffer | Max. 5.0Mbyte pre/post alarm buffer |
| Privacy Masking | 8 privacy zone |
| Motion Detection | On (144 block selection), Off |
| Enhancement | WDR (1-50, Off) |
| Day & Night | TDN (Auto, B&W, Off) |
| White Balance | Auto |
| Noise Filter | 2DNR (On, Off), 3DNR (On, Off) |
| Image Adjustment | Hue, Saturation, Brightness, Contrast |
| Sharpness | Level 0~5 |
| Auto Gain Control | Level 1~120 |
| Shutter Speed | Auto, Manual (1/30~1/24000) |
| Sense-up | Level 0~5 |
| Flip | Vertical (On, Off), Horizontal (On, Off) |
| PTZ | - |
| Interface | |
| Memory Slot | 1 Micro SD/SDHC |
| Network | |
| LAN | 10/100-base-T (auto sensing) |
| Protocol | HTTP, HTTPS, TCP, Unicast, TCP/IPv4/v6, UDP, FTP, Telnet, HTTPS, RARP, PPPoE SNMP, PAP, CHAP, DHCP, NTP, SMTP client, uPnP & etc |
| Standard | ONVIF (Profiles) |
| Viewer | Browsers (IE, Chrome, Firefox, Safari etc), CMS, Quick Time, VLC |
| Dynamic IP | DDNS (www.ipctvdns.com) |
| Smart Solution | IPCAM(VISION (iOS, Android) |
| Security | HTTPS, Encrypted & BasicAuthentication |
| Hardware | |
| System | 32bit Embedded Linux, 256Mbyte SDRAM, 128Mbyte NAND Flash |
| Approvals | KC/FCC/CE, RoHS, IP66 |
| Power Supply | SMPS, DC 12V/1A |
| Power Consumption | Max. 7.8W |
| Dimension | 100Ø x 141.5(L) x 102(H) mm |
| Weight | About 885g without Power Supply |
快速判斷
適用環境
高溫／危險／粉塵／連續製程等需要遠端觀測的場域。
核心價值
提升可視性、降低人員暴露風險，並將異常資訊送到管理端。
可整合
可依專案需求規劃網路、告警、熱像、AI與中央監控。
工程需求表
| 需求項目 | 建議提供資訊 |
|---|---|
| 現場溫度 | 正常／最高溫度與量測位置 |
| 安裝位置 | 爐內、爐壁、設備外側、管線或其他位置 |
| 影像需求 | 彩色、熱成像、固定、迴轉、360°或移動 |
| 通訊方式 | 網路、4G／WiFi、既有監控系統 |
| 認證條件 | 是否有防爆、防水或其他場域要求 |
建議下一步
填寫現場條件不用先知道型號
工程初判確認適用架構
方案與報價依規格提供建議
專案導入施工、測試與整合
不知道該選哪一款？沒關係。
提供現場溫度、距離、照片、設備用途與需求，我們先幫您判斷。
