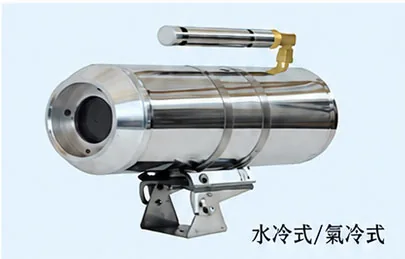

耐高溫攝影系統Heat-proof Camera System
HD-SDI Full HD/300M/500M/4K
雙層不鏽鋼防護罩，冷卻攝影機後空氣可從前端形成風幕，使鏡頭具有防塵功能，可耐溫度 500°C環境。
Double layer stainless steel housing for air cooling.
Cooling camera bellow 40°C.
Motorized auto focus.
PoE—Power Over Ethernet Route From NVR.
Temperature detector on camera, display on screen,
alarm output to buzzer. (Optional)
Resistant to ambient temperature over 500 °C.
High pressure air emission from front window becoming
air curtain to clear lens.
採用空氣或水熱交換器，攝影機溫度可降至 45°C 以下。
攝影機直接接至影像、網路線上供電系統。
如採用 HD-SDI Full HD 攝影機,既有線路不需更換
具溫度偵測器，即時顯示溫度在螢幕上，並具有溫警報功能。(選購)
| Camera | |
|---|---|
| Image Sensor | 1/2.8”3.21M Progressive Scan CMOS |
| Lens | 2.8 ~ 12.0mm (F1.2) motorized, auto IRIS |
| Min. Illumination | Color: 0.05 lux, B&W: 0 lux |
| IR | 42 IR LED |
| PoE | IEEE 802.3af |
| Video | |
| Streaming | Triple Streaming |
| Compression | H.264, M-JPEG |
| Resolution | 2048x1536, 1920x1080, 1280x720, 704x480, 640x352, 320x176, 160x96 |
| Max. Frame Rate | 30fps, 25fps |
| Bit Rate Control | VBR, CBR (H.264 only, 32K~12Mbps) |
| Frequency Control | 60hz, 50hz |
| Buffer | Max. 5.6Mbyte pre/post alarm buffer |
| Privacy Masking | 8 privacy zone |
| Motion Detection | On (144 block selection), Off |
| Video Analytics | - |
| Stabilizer | - |
| Enhancement | WDR (1~50, Off) |
| Day & Night | TDN (Auto, B&W, Off) |
| White Balance | Auto |
| Noise Filter | 2DNR (On, Off), 3DNR (On, Off) |
| Image Adjustment | Hue, Saturation, Brightness, Contrast |
| Sharpness | Level 0~5 |
| Auto Gain Control | Level 1~120 |
| Shutter Speed | Auto, Manual (1/30~1/24000) |
| Sense-up | Level 0~5 |
| Flip | Vertical (On, Off), Horizontal (On, Off) |
| PTZ | - |
| Interface | |
| Video Out | -1 analog out |
| Audio In/Out | -2 way (1in, 1out) |
| Audio Compression | -G.711 |
| Alarm In/Out | -1DI, 1DO |
| Serial Port | -RS-232C, RS-485 |
| Peripherals | -1USB2.0 |
| Memory Slot | -2 Micro SD/SDHC |
| Network | |
| LAN | 10/100-base-T (auto sensing) |
| Protocol | HTTP, RTSP(RTSP/UniMulticast), TCP/IP(v4/v6), UDP, FTP, Telnet, HTTPS, RARP, PPPOE, SNMP, PAP, CHAP, DHCP, NTP, SMTP client, uPnP & etc |
| Standard | ONVIF (Profile S) |
| Viewer | Browsers (IE, Chrome, Firefox, Safari etc) Quick Time, VLC |
| Dynamic IP | DDNS (www.ipctvdns.com) |
| Smart Solution | IPCAM(VISION (iOS, Android) |
| Security | HTTPS, Encrypted & Basic Authentication |
| Hardware | |
| System | 32bit Embedded Linux, 256Mbyte SDRAM, 128Mbyte NAND Flash |
| Approvals | KCI/FCC/CE, RoHS, IP66 |
快速判斷
適用環境

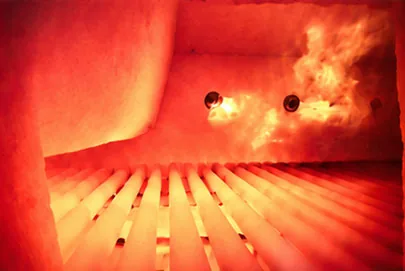

高溫／危險／粉塵／連續製程等需要遠端觀測的場域。
核心價值
提升可視性、降低人員暴露風險，並將異常資訊送到管理端。
可整合
可依專案需求規劃網路、告警、熱像、AI與中央監控。
工程需求表
| 需求項目 | 建議提供資訊 |
|---|---|
| 現場溫度 | 正常／最高溫度與量測位置 |
| 安裝位置 | 爐內、爐壁、設備外側、管線或其他位置 |
| 影像需求 | 彩色、熱成像、固定、迴轉、360°或移動 |
| 通訊方式 | 網路、4G／WiFi、既有監控系統 |
| 認證條件 | 是否有防爆、防水或其他場域要求 |
建議下一步
不知道該選哪一款？沒關係。
提供現場溫度、距離、照片、設備用途與需求，我們先幫您判斷。
